CSF 7245 High-Performance All-Aluminum Radiator for FORD GT 2005-2006

Description CSF 7245 High-Performance All-Aluminum Radiator for FORD GT 2005-2006

Due to the massive amount of heat generated by the supercharged V8, the factory radiator featured a massive 1-row 68mm thick core. There wasn’t much room to expand on this, so CSF matched the 68mm thickness but with updated core technology.

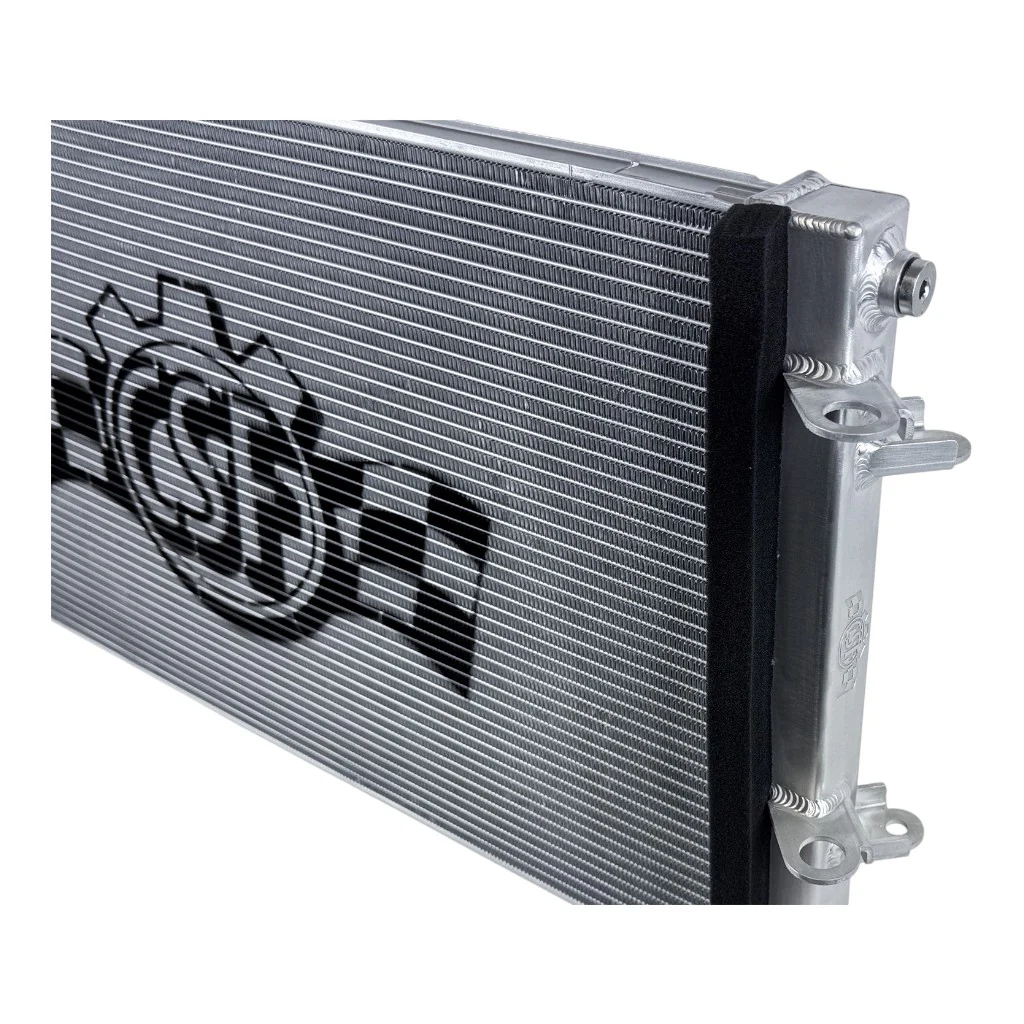

The CSF radiator features a 2-Row 68mm aluminum core that greatly improves the ability to dissipate heat.CSF’s Exclusive B-Tube Technology further increases the heat transfer by approximately 15% over regular oval welded tubes. Between the 4 additional rows of cooling tubes/fins and 2-row core, the CSF Radiator outperforms the OEM unit by a significant margin. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. The radiator mounts in the factory location and requires no modifications or cutting. It can be paired with the OE heat exchanger or the new CSF #8365 High-Performance Supercharger Heat Exchanger.

The TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident this will be the last radiator you will need to buy for your Ford GT.

• 2-Row – 68mm Ultra-High-Performance Core
• Cooling Tubes with CSF’s Exclusive B-Tube Technology
• 8 mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• Compatible with All OEM accessories
• 100% All Aluminum TIG-Welded Construction
• True Plug-and-Play “Drop-in Fit” Installation Requires No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

Applications:

• 2005-2006 Ford GT

OEM Part Numbers:

• Ford: 4G7Z-8005-AA
